PART NUMBER - VPMUMF-10D922-AC
Alternate Part Number -
Part Description - TFT module 12'3
Receiving Plant Information
Plant Name :Palmela Electronics (M/B) 351E
Vehicle Program(s) :VPMUMF-10D922-AC-
Implementation Date [dd/mm/yyyy] :
Annual Part Volume :
Component Data
Component Type:Appliques
Part Length:11.772 in
Part Width:4.799 in
Part Height:0.276 in
Individual Part Weight :0.313000 lb
Part Status :Engineering Change
Primary Container Data
Expendable or Durable :Expendable
Container Type :Carry Over Packaging
Container Description :Carton - HSC (FEFCO 0200)
Interior Dunnage Type :Expendable
Interior Dunnage Description :carton-HSC(FEFCO 0200)
Reel Density :
Container Length:18.701 in
Container Width:14.764 in
Container Height:8.858 in
Layers Per Container :2
Container Density :16
Container Gross Weight :7.614 lb
Logistics Cost Breakdown
Logistics Cost Breakdown:
Supplier Information
Supplier Name :TIANMA MICRO-ELECTRONICS (HONG KONG) LIMITED
Supplier Location :
Supplier Code :80029231
Shipping Unit Load Data
Palletization Method :Wood (Treated)
Load Securement Method :Banding/Strapping
Unit Load Length :47.244 in
Unit Load Width :39.370 in
Unit Load Height :41.399 in
Pallet Height :0.000 mm
Containers Per Layer :6
Layers Per Unit Load :4
Containers Per Unit Load :24
Unit Load Density :384
Unit Load Gross Weight :0.000 lb
Tare Weight :-120.192 lb
Stackability During Transport :2 High
Raw Material in Octabin :No
Transportation Mode :Rail
Supplier Notes
Customer (or Receiving Location) Notes
Master Label Sample Photo Inner Label Sample Photo

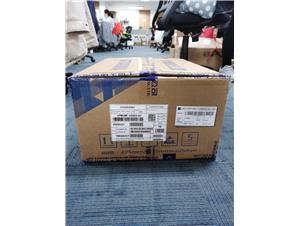

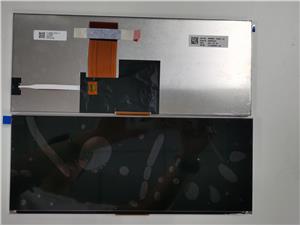

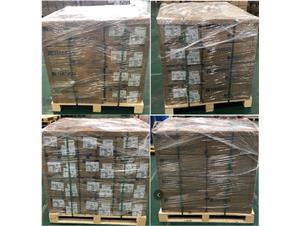

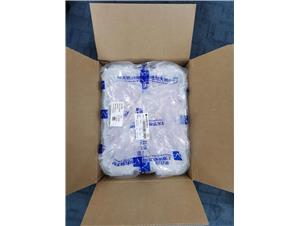

Component Photo Container Internal Photo Container External Photo Unit Load Photo
ALL INFORMATION HAS BEEN PREPARED AND CONCURRED BY:
PACKAGING APPROVER : jpatrici@visteon.com 7/15/2021 SUPPLIER : liu bing - bing_liu2@tianma.cn 7/2/2021 2:58:29 AM
MANUFACTURING APPROVER : jcurto@visteon.com 7/16/2021MP&L APPROVER : npires2@visteon.com 7/15/2021
PICS approval does not release the supplier from quality and delivery obligations. Approval from PICS activities is related to the functionality of the packaging system, NOT in-bound quality. The supplier maintains the responsibility to ensure quality specifications are met.
DECIMAL DEMARCATION IS PERIODVersion: 1    PRINT DATE : 17/01/25
