PART NUMBER - VPPJ1F-17N048-CC
Alternate Part Number -
Part Description - J03 FRONT PANEL
Receiving Plant Information
Plant Name :HIROSHIMA PLANT 710A
Vehicle Program(s) :J03-
Implementation Date [dd/mm/yyyy] :08/01/2023
Annual Part Volume : 32,312
Component Data
Component Type:Displays
Part Length:7.929 in
Part Width:1.047 in
Part Height:0.866 in
Individual Part Weight :0.044092 lb
Part Status :New
Primary Container Data
Expendable or Durable :Expendable
Container Type :
Container Description :Carton - RSC (FEFCO 0201)
Interior Dunnage Type :N/A (Bulk)
Interior Dunnage Description :
Reel Density :
Container Length:12.205 in
Container Width:15.551 in
Container Height:10.433 in
Layers Per Container :1
Container Density :80
Container Gross Weight :2.866 lb
Logistics Cost Breakdown
Logistics Cost Breakdown:
Supplier Information
Supplier Name :NAGANUMA SHOJI CO LTD
Supplier Location :
Supplier Code :80005689
Shipping Unit Load Data
Palletization Method :Plastic
Load Securement Method :Stretch Wrap
Unit Load Length :47.244 in
Unit Load Width :39.370 in
Unit Load Height :35.827 in
Pallet Height :115.000 mm
Containers Per Layer :4
Layers Per Unit Load :3
Containers Per Unit Load :12
Unit Load Density :960
Unit Load Gross Weight :100.972 lb
Tare Weight :58.643 lb
Stackability During Transport :1 High
Raw Material in Octabin :No
Transportation Mode :Truckload
Supplier Notes
Customer (or Receiving Location) Notes
Master Label Sample Photo Inner Label Sample Photo

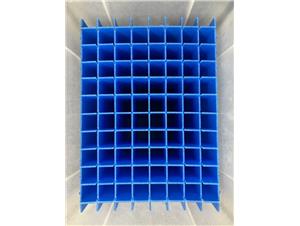

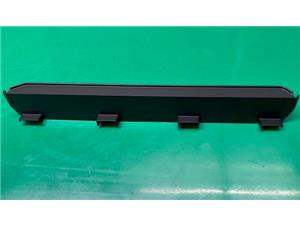

Component Photo Container Internal Photo Container External Photo Unit Load Photo
ALL INFORMATION HAS BEEN PREPARED AND CONCURRED BY:
PACKAGING APPROVER : shanaki@visteon.com 6/12/2023 SUPPLIER : senda toshihiro - senda@naganuma.co.jp 6/2/2023 3:34:57 AM
MANUFACTURING APPROVER : ynishiy3@visteon.com 6/12/2023MP&L APPROVER : shanaki@visteon.com 6/12/2023
PICS approval does not release the supplier from quality and delivery obligations. Approval from PICS activities is related to the functionality of the packaging system, NOT in-bound quality. The supplier maintains the responsibility to ensure quality specifications are met.
DECIMAL DEMARCATION IS PERIODVersion: 1    PRINT DATE : 15/06/25
